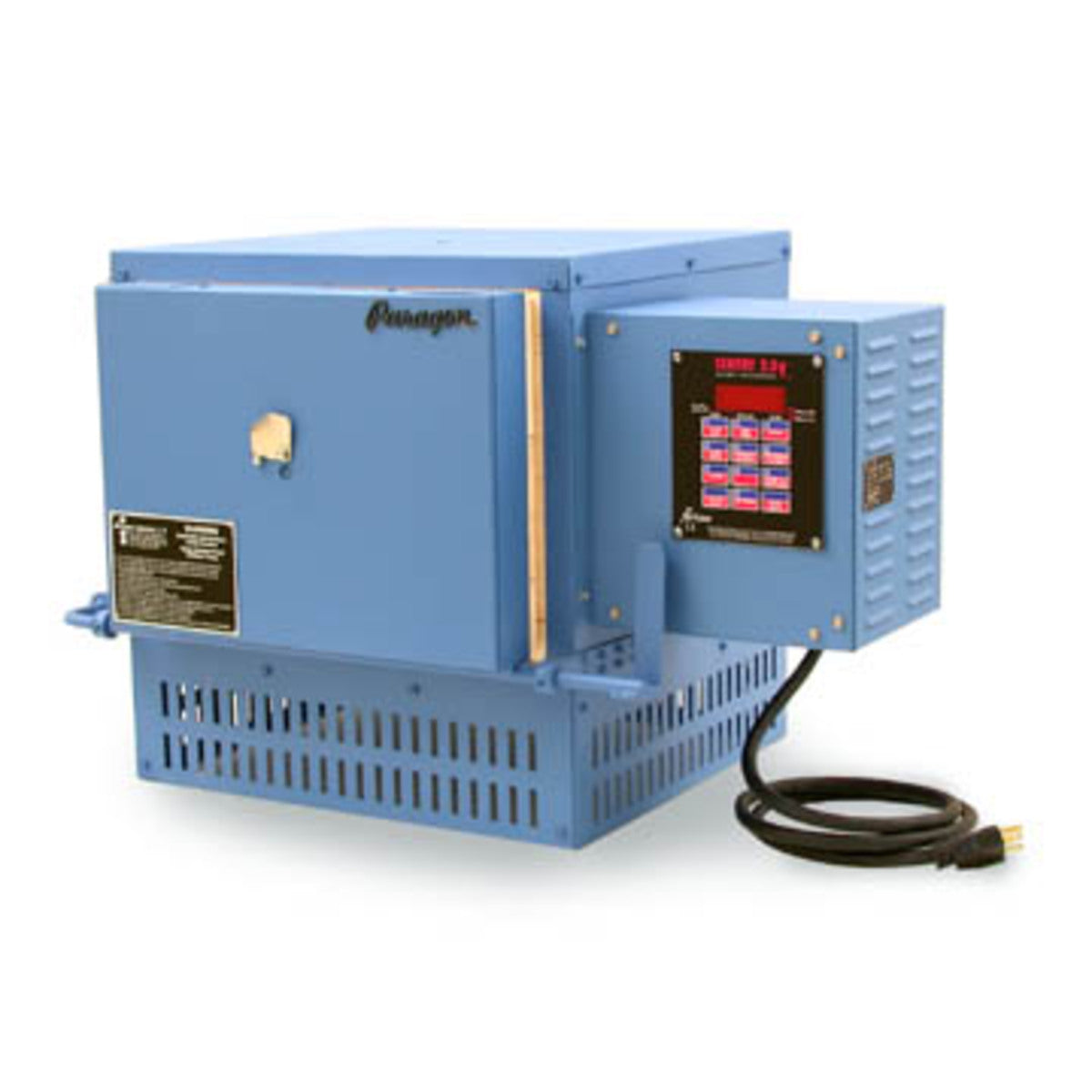

HEAT TREATING FURN 4 SIDE .89CU FT

THIS IS A DROP SHIPPED OR SPECIAL ORDER ITEM. PLEASE CONTACT OR LEAVE A NOTE IN THE COMMENTS BOX REQUESTING ESTIMATED WAIT TIME FOR SHIPPING

The door swings open with one-handed operation. A counter-weight handle holds the door securely closed. The door has a vent hole, so you can see inside the furnace during firing. A built-in stand lifts the firing chamber safely off your worktable, so no extra stand is needed. The door is mounted with a heavy-duty hinge for smooth opening. A micro-switch shuts off the power to the elements when the door is opened. A heat shield, mounted between the switch box and furnace, helps keep the switch box components cool even during extended operation. SPECIFICATIONS Max. Temperature
2000F
1093C

Amps
13

Phase
1

Watts
3120

Nema
6-20P

Breaker Size
20

Circuit Wire Size
14 gauge

UL
N

CE
N

Control Type
Sentry Digital 12-key Non-Ceramic

Voltage
240

Hertz
60

Sides
4

Chamber Volume
0.89 CU.FT.
25.20 litres

Chamber Width
13.00
331 mm

Chamber Depth
13.50
343 mm

Chamber Height
8.75
223 mm

Outer Size
18.25W x 22.50D x 20.50H Inches
464W x 572D x 521H mm

Ship Size
32.00W x 24.00D x 26.50H Inches
813W x 610D x 674H mm

Ship Weight
131.00 Lbs.
59.42 Kg.
