HFS Homebrew Beer Wort Chiller Manual & Datasheet

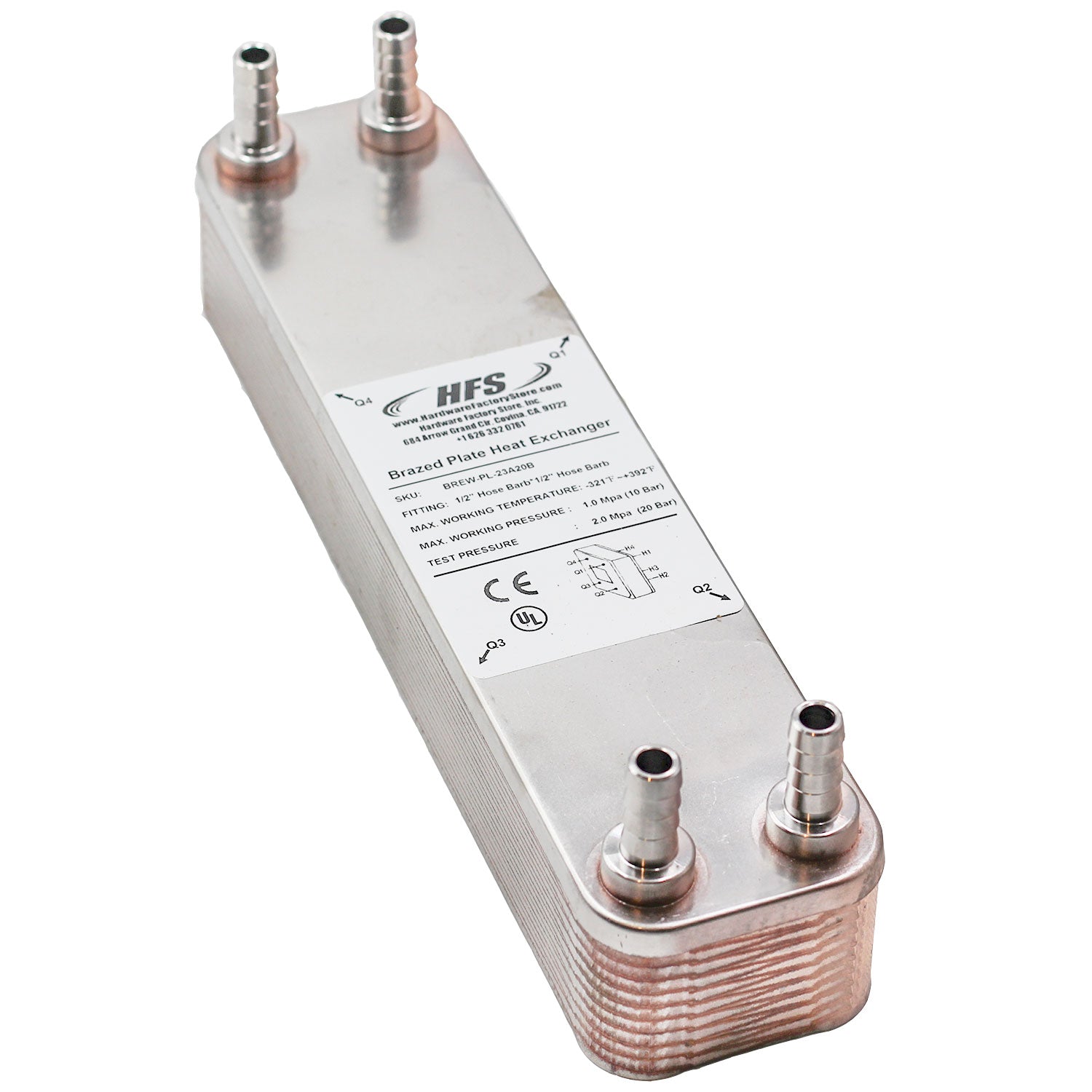

Thanks for purchasing HFS Wort Plate Chiller! This chiller is similar to those used in professional breweries, but is designed to work with your home brewing system.
This chiller consists of 20-40 plates of 304 Stainless Steel. Pure copper sheets are inserted in between each plate and heated in a furnace which melts the copper. This process makes a water tight seal in between the plates. Each chiller is pressure tested to check the seal quality of each pocket.

Working Principle

Plate chillers work by running cold water through every-other plate, and running wort through the plates in between. This maximizes the surface area for the fastest cooling possible, getting your wort to a safe fermenting temperature much faster than immersion chillers ever could. Plate chillers can be operated with a gravity system or with a pump. You can also save on water by utilizing a closed-loop cold water pump system.

Feature

• Material: 304 Stainless steel with 99.9% Copper Brazing
• Manufacturer warranty: 1 Year warranty, 30-day money back guarantee
• Standards: UL listed, CE certified
• Plate Thickness: 0.3mm (0.0118″)
• Max. Flow: 66.6L/min (17.6gpm)
• Design Pressure: 1.0Mpa (145 psi)
• Test Pressure: 2.0Mpa (290psi)
