VigilLink 1 CH Mini Curved Edge Blending Processor

1 CH Mini Edge Blending Processor

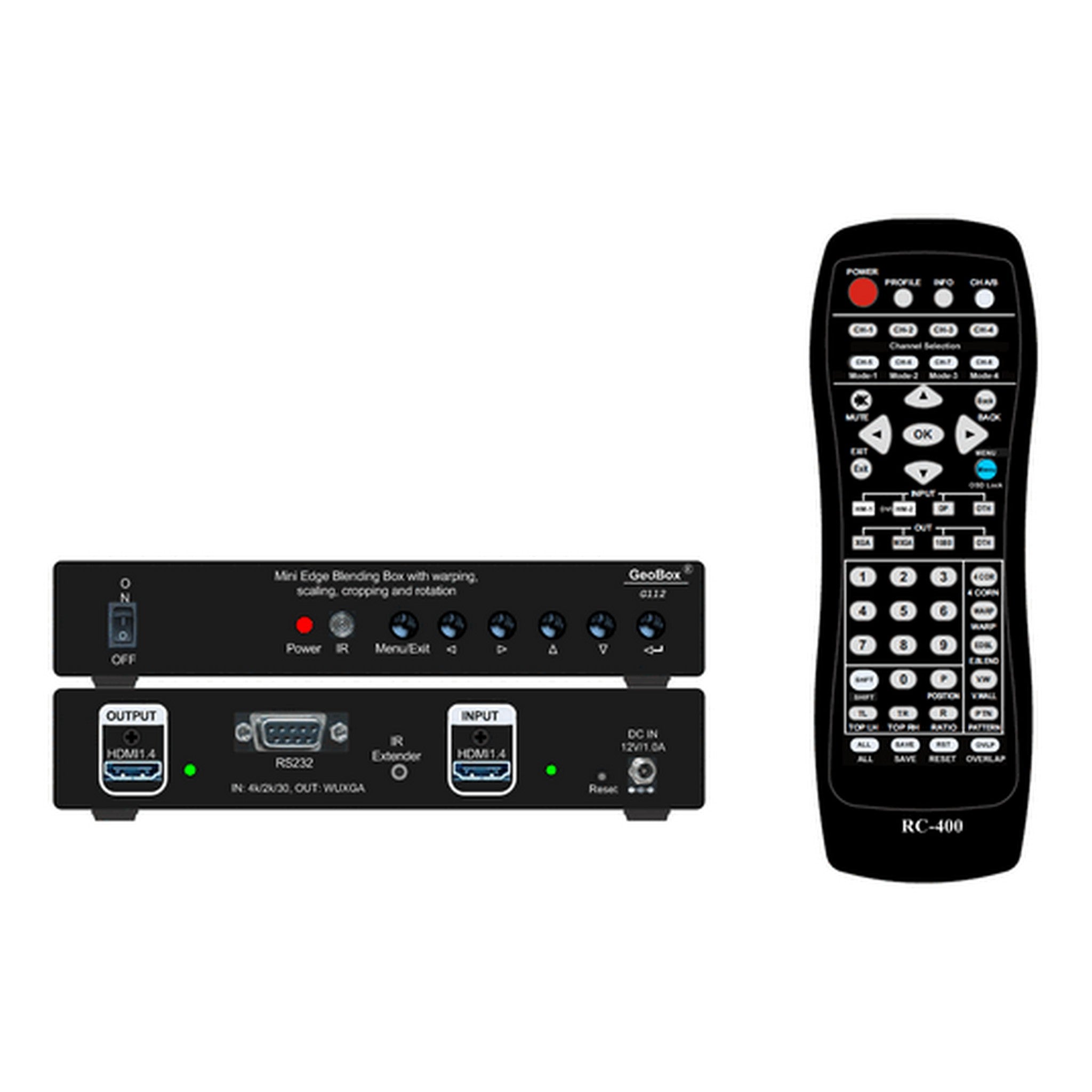

The GeoBox G112 is a high-performance video processor designed to handle complex geometry alignment, edge blending, and image warping with unparalleled precision. Featuring an HDMI 1.4 input and output, it supports resolutions up to 3840×2160 at 30Hz with 4:4:4 chroma sampling, ensuring crystal-clear image quality without compression. This device is ideal for applications requiring flexible aspect ratio control, edge blending across multiple screens, and precise image geometry adjustments.

With a powerful warp engine, the G112 enables precise geometry alignment, supporting up to a 17×9 grid control point configuration. Its adjustable grid pattern size ranges from 8 to 120 pixels, allowing for meticulous fine-tuning of projection setups. Edge blending is fully customizable with independent RGB gamma correction and blending at all four edges, making it perfect for immersive projection environments. Additionally, the G112’s embedded video wall functionality allows seamless image splitting, cropping, and overlapped pixel settings for professional display configurations.

Built with a high-end 10-bit video processor, the G112 features advanced image processing technologies, including 3:2/2:2 cadence, low-angle smooth algorithms, and a high-quality scaling engine. The device supports motion-adaptive 3D de-interlacing, linearity grid line adjustments for rapid H&V alignment, and flexible image rotation and flipping up to 4K at 30Hz. With selectable and programmable EDID, users can store up to five custom settings for quick recall via remote control, keypad, or RS232. Designed for reliability, the G112 operates in demanding environments with ESD protection, low power consumption, and comprehensive control options, making it a must-have for professional AV installations.

Key Features

• High-Resolution Support: Supports up to 3840×2160 @ 30Hz with 4:4:4 chroma sampling without compression.
• Advanced Geometry Alignment: Warp engine with up to 17×9 grid control points for precise image correction.
• Edge Blending: Supports four-edge blending up to 1920 pixels (H) and 1200 pixels (V) with independent RGB gamma correction.
• Embedded Video Wall Function: Image splitting, cropping, and overlapped pixel settings for multi-screen setups.
• Flexible Rotation & Flip: Supports 90/180/270-degree rotation, flipping, cropping, and scaling up to 4K @ 30Hz.
• High-Performance Processing: 10-bit video processor with motion-adaptive 3D de-interlacing and high-quality scaling.
• Selectable & Programmable EDID: Customizable EDID settings with up to five storable configurations for quick recall.
• Reliable & Secure: Built-in ESD protection and low power consumption for stable, long-term operation.
• Multiple Control Interfaces: Keypad, IR remote, RS232 control with system settings backup capability.

Technical Specifications

Input:
1x HDMI 1.4

Input Resolution:
Supports up to 3840×2160 @ 30Hz with 4:4:4 chroma sampling without compression
Compatible with various video sources, including non-VESA standard input resolutions

Output:
1x HDMI 1.4

Selectable Output Resolutions:
XGA, WXGA, 1280×720, 1280×1024, 1366×768, 1920×1080 (24/30/50/60Hz), 1920×1200 (30/60Hz), 2048×1080/60, 1024×768 @120Hz, 1280×720 @120Hz, 1280×800 @120Hz

HDCP:
Input: HDCP V1.4
Output: HDCP V1.4

Support:
Supports non-VESA standard input timings for easy connection with various signal sources

Latency:
Two-frame latency: 33ms (at V=60Hz)

Image Warp, Geometry Alignment, and Edge Blending:
Selectable grid pattern size from 8-120 pixels in H&V directions (default: 32×32 pixels)
Warp engine for geometry alignment up to 17×9 grid control points
Maximum geometry adjustment up to ±600 pixels in both H&V directions at each corner
Edge blending at four edges up to H=1920 pixels, V=1200 pixels with independent RGB gamma correction
Supports “W” type Corner Wall adjustment in H&V at flexible locations

Linearity Grid Line Adjustment:
Supports linearity grid line adjustment for quick H&V group line position alignment

High-End 10-bit Video Processor:
10-bit processor with 3:2/2:2 cadence, low-angle smooth algorithm, and high-quality scaling engine
3D motion-adaptive de-interlace

Edge Mask:
Edge mask following the result of geometry alignment up to 500 pixels

Video Wall Function:
Embedded video wall function for image split, cropping, and overlapped pixel setting for edge blending
Flexible aspect ratio adjustment in each edge up to ±1800 pixels position shift

Color Processing:
Color and white balance adjustment

Rotation & Flip:
Image 90/180/270-degree rotation, flip, cropping, scaling, and color adjustment up to 4K @ 30Hz

EDID:
Selectable and programmable EDID in the range of H=1024-3840, V=720-2400
User can save up to five settings, recallable via remote controller, keypad, or RS232

ESD Protection:
±8kV (Air-gap discharge), ±4kV (Contact discharge)

Power Supply:
DC: 12V 1.0A

Power Consumption (Max):
DC 12V 0.4A

Working Environment:
45°C, 10-90% RH

Control:
Keypads, IR remote, RS232
System settings can be stored and backed up on a PC

Dimensions (Body Only):
Length: 6.65 inches
Width: 4.57 inches
Height: 1.22 inches

Weight (Body Only):
1.15 pounds

Certifications:
CE/FCC/RoHS Certified

Warranty:
2-Year Warranty, with paid extension available up to 5 years
